GraphQL Core Concepts

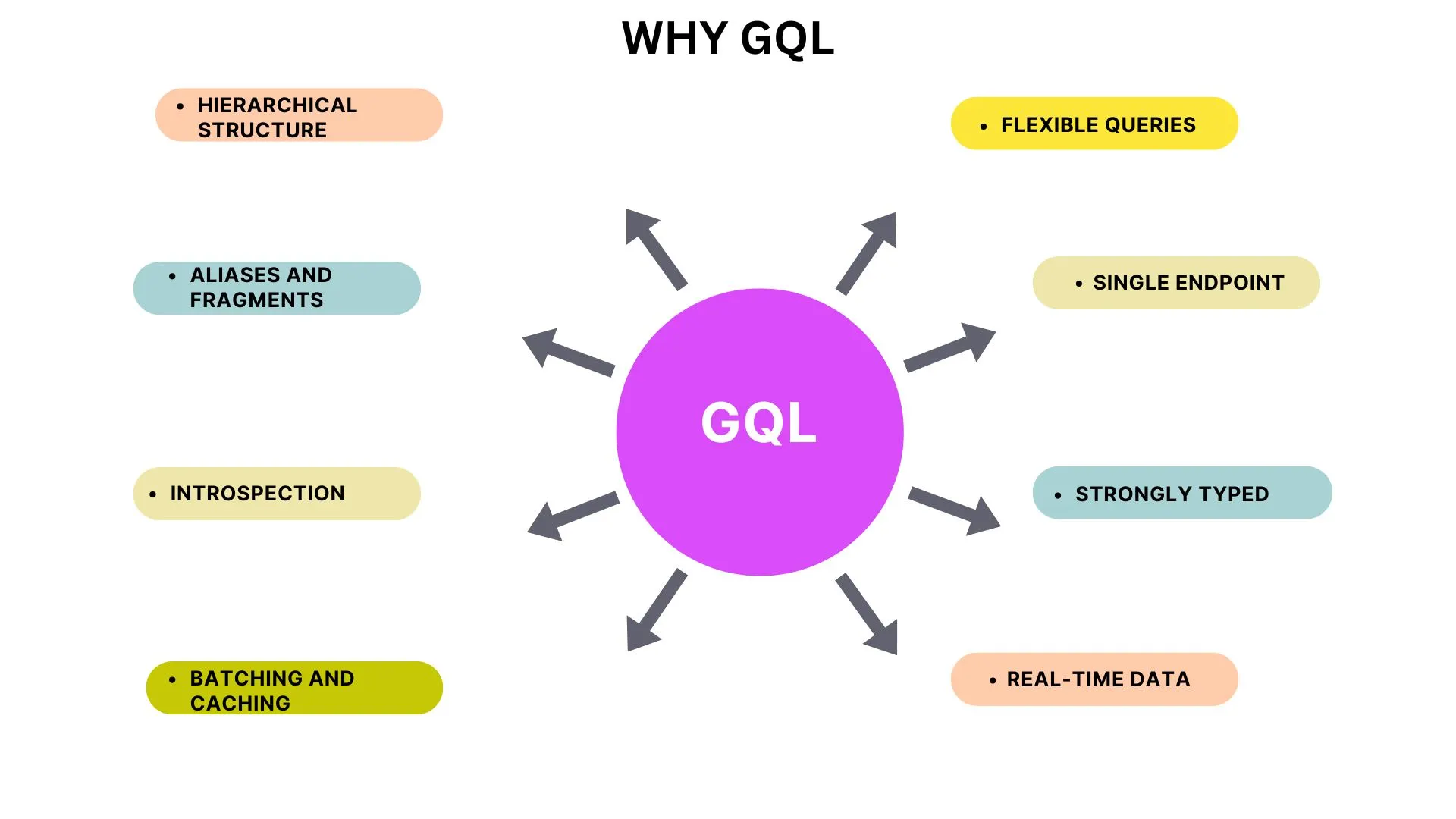

What is GraphQL

• GraphQL is a query language for APIs, developed by Facebook
• It solves the pain points of REST, like over-fetching or under-fetching

It can be divided into four parts :-

1. Schema - GraphQL Blueprint
2. Queries - Fetching Data
3. Mutations - Create, Update, Delete (CUD)
4. Subscriptions - Real-Time Updates

Schema

Schema - GraphQL Blueprint

• The schema is the heart of a GraphQL API.
• It defines what data is available, how it’s structured, and what operations (queries, mutations, subscriptions) you can perform.
• Written in Schema Definition Language (SDL), it’s readable and declarative.

# Define the overall structure of the GraphQL API,
# Specifying the entry points for queries, mutations, and subscriptions

schema {

  # The root type for reading data (queries)
  query: Query

  # The root type for modifying data (mutations)
  mutation: Mutation

  # The root type for real-time data updates (subscriptions)
  subscription: Subscription
}

# Define the Query type, which contains fields that can be queried
type Query {
  # A simple field that returns a String value, e.g., "Hello, World!"
  hello: String
}

• This schema declares a Query type with a hello field that returns a string.
• The schema ensures consistency, so clients know exactly what’s possible.

Types : The Building Blocks of Data

1. Scalar Types
2. Object Types
3. Union Types

1. Scalar Types - The Primitives

• ID: A unique identifier, often a string
• String, Int, Float, Boolean

2. Object Types - The Structure

# Define a Post type to represent a blog post or similar content entity in the GraphQL schema
type Post {
  # A unique identifier for the post, marked as non-nullable (required)
  id: ID!
  # The title of the post, marked as non-nullable (required)
  title: String!
  # The content of the post, optional (nullable)
  content: String
  # The author of the post, represented by a User type; can be null if not assigned
  author: User
}

Enums: Restricted Values

# Define the enum type
enum UserRole {
  ADMIN
  EDITOR
  VIEWER
}

# Define the User type that uses the enum
type User {
  role: UserRole
}

Interfaces: Shared Fields

• Interfaces define a contract that multiple types can implement, sharing common fields.

# Define an interface named Character that specifies a common structure for types like Hero and Villain
interface Character {
  id: ID!
  name: String!
}

# Define a Hero type that implements the Character interface, adding specific fields for a hero
type Hero implements Character {
  id: ID!
  name: String!
  powers: [String]
}

# Define a Villain type that implements the Character interface, adding specific fields for a villain
type Villain implements Character {
  id: ID!
  name: String!
  evilPlan: String
}

Union Types: Mixing Unrelated Types

• Unions allow a field to return one of several types that don’t share fields.

# Define the union type
union SearchResult = User | Post

# Define the User type
type User {
  id: ID!
  name: String!
  email: String
}

# Define the Post type
type Post {
  id: ID!
  title: String!
  content: String
}

# Define the schema with Query type
schema {
  query: Query
}

# Define the Query type that includes the search field
type Query {
  search(query: String!): [SearchResult]
}

Response:

{
  "data": {
    "search": [
      { "name": "Alice", "email": "alice@example.com" },
      { "title": "GraphQL Basics", "content": "Learn GraphQL..." }
    ]
  }
}

Directives: Decorators for Extra Behavior

• Directives are like decorators
• They add extra behavior or metadata to fields, types, or queries without altering their core functionality

# Define a custom directive named @uppercase that can be applied to FIELD_DEFINITION locations
directive @uppercase on FIELD_DEFINITION

# Define the Query type, which serves as the entry point for reading data
type Query {
  # A field that returns a String value, decorated with the @uppercase directive to transform its output
  greeting: String @uppercase
}

• Here, @uppercase on FIELD_DEFINITION might transform the greeting field’s value (e.g., “hello” to “HELLO”).

Built-In Directives

• @include(if: Boolean): Include a field if the condition is true.
• @skip(if: Boolean): Skip a field if the condition is true.
• @deprecated(reason: String): Mark a field as deprecated.

Custom Directives

• You can define custom directives, like @uppercase above, or for authorization.

Authorization with Directives

• Custom directives like @auth(role: String) can enforce access control.

# Define the Query type, which serves as the entry point for reading data
type Query {
  # A field that returns a String value, restricted to users with the ADMIN role using the @auth directive
  secretData: String @auth(role: "ADMIN")
}

• This ensures only admins access secretData. Directives are powerful for adding behaviors like authorization or formatting.

Queries

Queries - Fetching Data

Queries are how you read data in GraphQL. They’re read-only and can range from simple to complex.

Simple Query

{
  hello
}

**Response: **

{ "data": { "hello": "World" } }

Arguments

• Fields can take arguments for filtering:

{
  user(id: "123") {
    name
  }
}

Variables

• Variables make queries dynamic, keeping them reusable:

query GetUser($id: ID!) {
  user(id: $id) {
    name
  }
}

Fragments: Reusable Selections

• Fragments avoid duplication by defining reusable sets of fields:

# Define a reusable fragment named UserInfo that specifies a set of fields to fetch from a User type
fragment UserInfo on User {
  name
  email
}

# A query to fetch data for a user and their friend using the UserInfo fragment
{
  # Fetch data for a user with the specified ID (e.g., "123")
  user(id: "123") {
    # Apply the UserInfo fragment to include name and email
    ...UserInfo
  }
  # Fetch data for a friend with the specified ID (e.g., "456")
  friend(id: "456") {
    # Apply the UserInfo fragment to include name and email
    ...UserInfo
  }
}

• Inline fragments handle abstract types (unions/interfaces) by specifying type-specific fields:

# A query to search for data using a query string, handling results that could be either User or Post types
{
  # Fetch search results based on the query string "graphql"
  search(query: "graphql") {
    # Inline fragment to specify fields for User type results
    ... on User {
      name
      email
    }
    # Inline fragment to specify fields for Post type results
    ... on Post {
      title
      content
    }
  }
}

• Inline fragments are critical for unions and interfaces, as GraphQL needs to know which fields to fetch for each possible type.

Mutations

Mutations - Create, Update, Delete (CUD)

Mutations handle data modification — create, update, delete. They’re like queries but change data and return the updated state for confirmation.

Input vs. Output Types

• Input Types: Bundle mutation arguments into a single object using the input keyword. They’re limited to scalars, enums, or other input types.
• Output Types: Regular object types (e.g., User) returned to show the result.

# Define the Mutation type, which serves as the entry point for modifying data
type Mutation {
  # Create a new user with the provided input data, returning the created User object
  createUser(input: CreateUserInput!): User!
  # Update an existing user with the specified ID and input data, returning the updated User object
  updateUser(id: ID!, input: UpdateUserInput!): User!
  # Delete a user with the specified ID, returning a Boolean indicating success
  deleteUser(id: ID!): Boolean!
}

# Define an input type for creating a new user, requiring name and email
input CreateUserInput {
  name: String!
  email: String!
  age: Int
}

# Define an input type for updating an existing user, with optional fields
input UpdateUserInput {
  name: String
  email: String
  age: Int
}

# Define the User type to represent a user entity, used as the return type for mutations
type User {
  id: ID!
  name: String!
  email: String
  age: Int
}

Create Mutation

mutation {
  createUser(input: {
    name: "Bob"
    email: "bob@example.com"
    age: 30
  }) {
    id
    name
    email
  }
}

Response:

{
  "data": {
    "createUser": {
      "id": "456",
      "name": "Bob",
      "email": "bob@example.com"
    }
  }
}

Update Mutation

mutation {
  updateUser(id: "456", input: {
    name: "Robert"
    age: 31
  }) {
    id
    name
    age
  }
}

Response:

{
  "data": {
    "updateUser": {
      "id": "456",
      "name": "Robert",
      "age": 31
    }
  }
}

Delete Mutation

mutation {
  deleteUser(id: "456") {
    success
  }
}

Response: gql{ "data": { "deleteUser": true } }

Subscriptions

Subscriptions: Real-Time Updates

Subscriptions enable real-time data pushes from the server to the client, making them ideal for live updates like chat messages, stock prices, or notifications.

Unlike queries (one-time fetches) or mutations (data changes), subscriptions maintain an open connection, allowing the server to send data whenever an event occurs.

How Subscriptions Work

• Subscriptions are defined in the schema under the Subscription type. They often take arguments to filter events and return data when triggered.

# Define the Subscription type, which serves as the entry point for real-time data updates
type Subscription {
  # Subscribe to new messages in a specific channel, returning the added Message
  messageAdded(channel: String!): Message
  # Subscribe to online status updates for a specific user, returning the UserStatus
  userOnline(userId: ID!): UserStatus
}

# Define the Message type to represent a message entity in real-time updates
type Message {
  id: ID!
  text: String!
  author: User
}

# Define the UserStatus type to represent a user's online status
type UserStatus {
  user: User
  isOnline: Boolean!
}

Subscription Query:

subscription {
  messageAdded(channel: "general") {
    text
    author {
      name
    }
  }
}

• The client subscribes to messageAdded for a specific channel.
• When a new message is added (e.g., via a mutation elsewhere), the server pushes the update to all subscribed clients.
• Response: Multiple pushes over time, like { “data”: { “messageAdded”: { “text”: “Hi!”, “author”: { “name”: “Alice” } } } }

subscription {
  userOnline(userId: "123") {
    user {
      name
    }
    isOnline
  }
}

• This pushes updates whenever the user’s online status changes.

Key Points

• Subscriptions use protocols like WebSockets for persistent connections.
• They’re event-driven: The server decides when to send data based on triggers (e.g., database changes).
• Unsubscribe when done to free resources.
• Great for real-time apps, but not for static data — use queries for that.
